TPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiency

Short Description:

Machine: 4 Layer EVA Laminated Glass Machine Application: Glass Curtain Wall, Skylight, Building Glass, Home Furniture Decoration, Stairs And Railings, Shower Room, Glass Windows & Doors, Indoor Partition, Solar PV Panel, PDLC/LED Laminated Glass, Coffee Table Etc EVA Laminated Glass Production Layer: 4 Layer Max Glass Size: 2000x3000mm Max Glass Thickness: 36mm Production Capacity: 72 Square Meter For One Cycle 2000x3000mm TPU/EVA Laminated Glass Furnace with 99% Production ...


Product Detail

Product Tags

Machine: 4 Layer EVA Laminated Glass Machine Application: Glass Curtain Wall, Skylight, Building Glass, Home Furniture Decoration, Stairs And Railings, Shower Room, Glass Windows & Doors, Indoor Partition, Solar PV Panel, PDLC/LED Laminated Glass, Coffee Table Etc EVA Laminated Glass Production
Layer: 4 Layer Max Glass Size: 2000x3000mm
Max Glass Thickness: 36mm Production Capacity: 72 Square Meter For One Cycle

2000x3000mm TPU/EVA Laminated Glass Furnace with 99% Production Yeild

Safety EVA Glass Laminated Machine



Glass Laminating Machine



-Kinds of laminated glass processing
-99% pass rate
-Only 0.5KW for one sqm
-PLC control





Application:





Glass Curtain wall, skylight, building glass, home furniture decoration, stairs and railings, shower

room, glass windows & doors, indoor partition, solar PV panel, PDLC/LED laminated glass,

coffee table etc.



  • Condition: New
  • Machine Type: Glass Laminating Machine
  • Production Capacity: 30sets/one month
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Saint Best
  • Model Number: SBT-J-2-4
  • Voltage: 220-380V
  • Power(W): 26kw
  • Dimension(L*W*H): 3660L*2560W*1500H
  • Weight: 3600KG
  • Certification: CE
  • Warranty: One year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • maximum bending height: 200mm
  • vaccum bag: imported material
  • qualified product rate: 99%
  • heating system: stainless heating tube with radiation heating
  • temperature difference: no more than 5 degree
  • vacuum system: 24 hours stable work ,Germany technology
  • working principle: heating and vacuum
  • heating element: stainless heating tube
  • insulation layer: custom encryption composite board
    Capacity: 36square meter for 1/1.5 hours
    Processing glass size: Max glass size :2000mmx3000mm
    Processing glass thickness: Max glass thickness :36mm

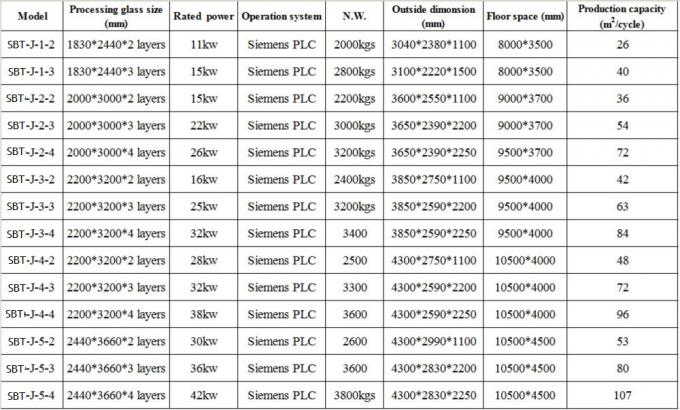

Technical Parameter: (2000mmx3000mmx4 layers)

Electric Power

(3-phase AC 220-440V)/26KW

Processing Glass Size

Max: 2000*3000mm / Min: 100*100mm



Max bending deep(mm): 400mm



Max glass thickness in each silicone bag: 36mm

Efficiency

Forming cycle: 75-90 Min/cycle



Max production capacity in one cycle: 72m²



Production capacity in 8 hours: 230m²

(if 80% full furnace loaded)

Operation platform

4 layers

Working Temperature

90-140℃

Exterior Dimension

3650*2390*2250 (1500mm)

Floor Space

3700*9000

Net Weight

3200kg



Packaging Details: WOODEN CASE
Delivery Detail: 20 DAYS

Packaging & Delivery

Specifications



1.vacuum system wind-cooling vacuum pump,italian design
2.curved tempered laminating glass in one step.
3.self-check function



1.Vacuum system

 We adopt wind-cooling vacuum pump,italian design,working stable and structure beautiful.it could continuously work for 24 hours.vacuum rate reach up to -0.09-0.098mpa.it is equipped with vacuum buffer tank,even in case of interruption of electricity,the tank double vacuum system makes vacuum faster and better.EVA Laminated Glass Equipment,Glass Laminating Machine,One Step Bend Tempered Glass Laminating Machine,EVA Laminated Glass Machine Production Line.

2.Our machine produces curved tempered laminating glass in one step,no need autoclave and pre-pressing machine.max bending height reaches 400mm.if you have autoclave ,our laminating glass equipment could work with it to produce curved safety glass easily and economically.One Step Bend

Tempered Glass Laminating Machine,EVA Laminated Glass Equipment with Germany Technology,EVA Laminated Glass Machine,PVB TPU Laminated Glass Furnace for Tempered Laminated Glass,Laminated Glass Furnace for Tempered Laminated Glass,Laminated Glass Machine.

3. PLC control,all program could be completed automatically .heating time and temperature could be adjusted according to the glass thickness.working status could be shown on touch screen.

our machine has self-check function,any problems,you could also check on touch screen .it is very easy and safe to operate.EVA Laminated Glass Machine,Two Layer EVA Laminated Glass Machine,

Two Layer EVA Laminated Glass Oven,Two Layer EVA Laminated Glass Furnace,Three Layer EVA Laminated Glass Machine,Three Layer EVA Laminated Glass Oven,Three Layer EVA Laminated Glass Furnace.

TPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiency



4.It adopts silica gel plate which is imported from USA,thick 3mm,it could stand high temperature to 180 degree.quality guarantee period keeps 4 years in normal condition.each layer silica gel can put glass around 36mm thickness and it improves processing efficiency Three Layer Laminated Glass Machine,

Three Layer Laminated Glass Oven,Three Layer Laminated Glass Furnace,Two Layer Laminated Glass Machine,Two Layer Laminated Glass Oven,Two Layer Laminated Glass Furnace,Four Layer Laminated Glass Machine,Four Layer Laminated Glass Oven,Four Layer Laminated Glass Furnace,Four Layer EVA Laminated Glass Machine,Five Layer EVA Laminated Glass Oven.

5.Fully automatic glass lifting platform is hydraulic,more durable.it make the processing easy and safe.it needs only 2-3 workers.it greatly saves your labor cost.EVA Laminated Glass Furnace,

Glass Vacuum Heat Laminating Machine,Glass Laminating Machine Five Layers,Type 5 Wagon

Laminating Machine,Semi-Automatic Glass Laminating Machine,EVA Laminated Glass Vacuum Heat

Laminated Oven Machinery,5 Layers Glass Laminating Machine.





Spare Part:

Spare parts

Brand

Spare parts

Brand

Electrical Accessory

SIEMENS

   Heating parts

      Stainless heating tube

      with radiation heating

Fan

Turbo blower

Special Position

Vacuum Bed

(Silicone Bag)

3mm thickness

imported material from USA

Warm-keeping layer

8-10cm thick,

stable performance



Vacuum Pump



Germany design

Has oil filter and air filter

Motor

China famous brand

Gavalnized angle  steel

8mm thickness,stable

PLC

      SIEMENS

Vacuum nozzle

Copper or stainless steel

Appearance

custom encryption composite board

Baking finished. Stable

 Atomatic lifting table

Hydropneumatic,

Can stand 1.5 tons











TPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiencyTPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiencyTPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiencyTPU / EVA Glass Laminating Machine with 99% Production Yeild , High efficiency
