High Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification

Short Description:

Number Of Motors: 22 Glass Double Edger With Film Removing Device: Glass Double Edger Production Line Certification: CE/ISO9001:2008 Glass Transmission Rate: 0~8m/min Glass Diagonal Error:: ±0.5mm/㎡ Thickness Of Process Glass: Standard 3~25mm Quick Details Condition: New Machine Type: Glass double edger production line/Glass Double Edger with Film Removing Device Production Capacity: 12 sets/month Place of Origin: Guangdong, China (Mainland) Brand Name: SAINT BEST Model Number:&n...


Product Detail

Product Tags

Number Of Motors: 22 Glass Double Edger With Film Removing Device: Glass Double Edger Production Line
Certification: CE/ISO9001:2008 Glass Transmission Rate: 0~8m/min
Glass Diagonal Error:: ±0.5mm/㎡ Thickness Of Process Glass: Standard 3~25mm

Quick Details

  • Condition: New
  • Machine Type: Glass double edger production line/Glass Double Edger with Film Removing Device
  • Production Capacity: 12 sets/month
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-BYS2522-D
  • Voltage: 220/380V/480 50Hz/60Hz 3P
  • Power(W): 56Kw
  • Dimension(L*W*H):4700*4250*1900mm
  • Weight: 8100kg
  • Certification: CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Grinding motor supplier: Shanghai ABB
  • Glass transmission rate: 0~8m/min
  • Thickness of process glass: Standard 3~25mm
  • Width of glass chamfering: 0~3mm
  • Number of motors:22
  • Error of glass chamfering width: ±0.2mm/m
  • Error of glass paralle: ±0.2mm/m

Packaging & Delivery

Packaging Details: export standard package
Delivery Detail: Shipped in 60 days after payment

 Product Description

SBT-BYL2522-D(22 motors)



Feature:

1) oil lubrication full automatic including all motor slide plate
2) one option or push button use to retrack or move backward all polishing spindle.
3)opening/ closing using gear-rack.
4)Drive using 2 sets 3KW servo motors.
5)opening/ closing using 1 set 1.5KW servo motors.BYL4525(22 motors)



1. The first Double Glass Edging Machine:SBT-BYS4522

and

2. The second Double Glass Edger:SBT-BYS2522



the number of motors :22motors (depends on the customer's requirement)

the width of glass chamfering : 0~3mm

The thickness of process glass :A/B/CType3~25mm;(E type small pieces:2~12mm)
The error of glass parallel: ±0.2mm/m

The error of glass chamfering width: ±0.2mm/m
Glass diagonal error : ±0.5mm/㎡

Width positioning error: ±0.1mm/㎡
Glass transmission rate : 0.5~8m/min

Power source:380/3ph/50Hz ( depends on the customer's requirement)

Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine

Arrangement of grinding wheels and distribution diagram of motor power

High Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification

Arrangement of grinding wheel and distribution diagram of motor power

Diamond wheel *4, Chamfering resin wheel *14,Resin wheel *2,Polishing wheel*6

High Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification



Main Features

45 degree 22 motors configuration 38mm/50mm/75mm of wide conveyor belt,it also can grinding 45 degree bevel edge,the minimal size of the common process glass is 180mm*180mm,minimal thickness 2mm.The thickest size depends on the requirements and the quality of grinding wheel.Glass double pencil edger,6 motors glass double pencil round edge grinding machine,8 motors glass double pencil round edge grinding machine.

This machine has the advanced structures,precision components,exquisite assembly technology,good fittings,stable property,excellent quality,easy operation and simply maintenance.,10 motors glass double pencil round edge grinding machine,Glass double round edging machine,10 motors glass pencil round double edge grinding machine,12 motors glass double pencil round edge grinding machine,14 motors glass double pencil round edge grinding machine.

Processing glass diagonal error within 0.5 mm,parallelism error within 0.1mm,chamfering balance,clear angles,no collapse edge, round edge phenomenon.10 Motors Glass double pencil edger,8 motors Glass double pencil edger,6 motors Glass double pencil edger,12 Motors Glass double pencil edger,14 motors Glass double pencil edger.

It is suitable for processing all kinds of high-grade sealed insulating glass and appliances glass.Can be extended the laser code then identify the automatic control.Glass Straight-line Turning Table,Glass automatic Turning Table,Glass Automatic Turning Table.glass tempering furnace,glass double edging machine,glass straight line beveling edging machine,glass straight line edging machine,glass straight line multilevel edging machine,glass washing machine,glass drilling machine,glass irregular shape machine,glass automatic sandblasting machine,glass chamfering machine and glass automatic cutting machine,glass automatic loading machine.

High Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification



High Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification

45 Degree Chamfering Processed Glass Samples

High Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification



Our Factory







High Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification





Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

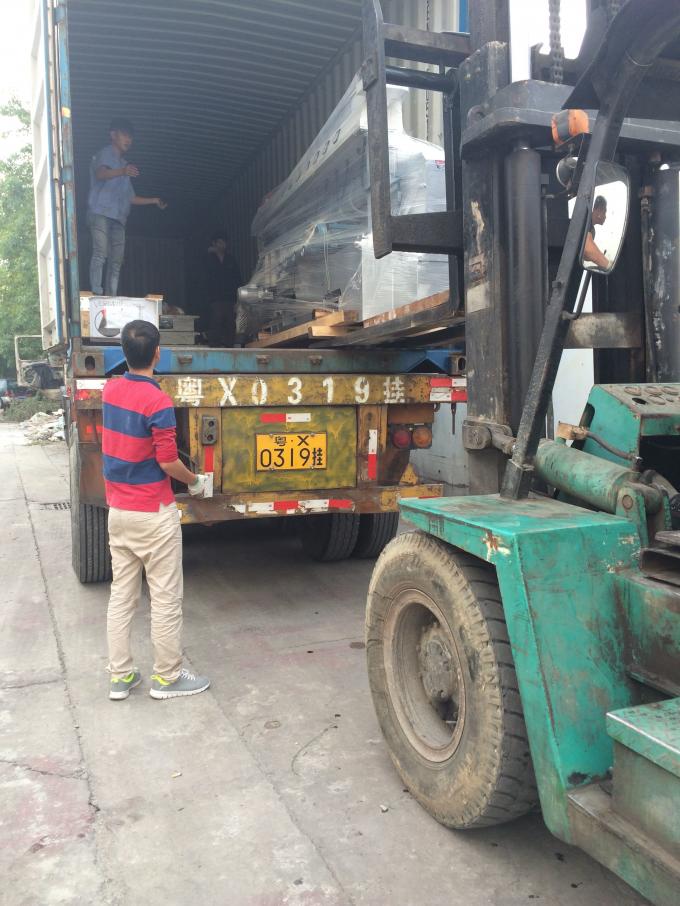

Packing & Delivery



High Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE CertificationHigh Efficiency 45 Degree Glass Double Edger Polishing Machine CE Certification
