Glass Double Edger Glass Processing Equipment / Glass Processing Plant,Glass Double Edger ,Straiight Line Glass Edger

Short Description:

Double Glass Edger And Polisher: Glass Straight Line Double Edger Line Max Size: 4200mm Control System: PLC Max Speed: 6meters/Min Glass Edging Machine: Straight Line Double Edging Glass Machine   Glass Double Edger Glass Processing Equipment / Glass Processing Plant   Glass Double Edger / Double Glass Edger and Polisher  Straight Line Double Edging Glass Machine    Quick Details Condition: New Machine Type: Glass Edging Machine Production C...


Product Detail

Product Tags

Double Glass Edger And Polisher: Glass Straight Line Double Edger Line Max Size: 4200mm
Control System: PLC Max Speed: 6meters/Min
Glass Edging Machine: Straight Line Double Edging Glass Machine



Glass Double Edger Glass Processing Equipment / Glass Processing Plant



Glass Double Edger / Double Glass Edger and Polisher

Straight Line Double Edging Glass Machine



Quick Details

  • Condition: New
  • Machine Type: Glass Edging Machine
  • Production Capacity: 18 sets/Month
  • Place of Origin:  China (Mainland)
  • Brand Name: Saint Best
  • Model Number: SBT-SM2025BL
  • Voltage: 380V or customerized
  • Power(W): 56000
  • Dimension(L*W*H): 4900*4500*1800
  • Weight: 7000kgs
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Processing Speed: 0.5-7m/min
  • Glass Thickness: 4-25mm
  • Minimum size of glass: 300 x 300mm
  • Total power: 56kw
  • Name: glass fillet corner machine

Packaging & Delivery

Packaging Details: Plastics cover. Suitable for sea transportation.
Delivery Detail: 60 days after placing the order

 Product Details

SBT-SM2025BL Glass straight Line double edging machine is suitable for grinding furniture glass, architecture glass, electrical appliance glass and so on. It has characters of fast processing speed, high precision, fine polishing. The machine adopts advanced double straight line guide & double ball bearing delivery system. It is controlled by PLC with touch panel, easy to operation.



Basic Info.

Model NO.:SBT-SM2025B Type:Glass Edging MachineCertification:CE, ISO Control System:PLCGlass Thickness:3-25mm Min. Processed Size:250mmMax. Processed Size:2500mm Max. Hemline Grinding:5mm(Single Line)Max. Arris Grinding:3mm Speed:1~6.5 M/MinOverall Size:4900X3900X1700mm Export Markets:Global

Additional Info.

Trademark:Saint Best Packing:Wood PackingOrigin:China Production Capacity:10set Per Month

Product Description

   SBT-SM2025BL glass double straight edging  machine is the Saint Best new generation developed product, with economic, efficient, high precision and reliable safety, whcih id  suitable for various specifications of the flat glass, ordinary laminated glass, Low-e film removing glass ,even more suitable for batch and mass production

SBT-SM2025BL Straight line double edging machine configuration from

I. Main technical data
1Glass thickness3~25 mm
2Min. Processed size250 mm
3Max. Processed size2500mm

4Max. Hemline grinding5mm(single line)
5Max. Arris grinding3mm
6speed1~6.5 m/minrequest achieve the best polishing effect 123
1when the grinding thickness is 4mm-8mm, speed: 3m/min
2when the grinding thickness is 10mm-12m, speed: 2.3m/min
3when the grinding thickness is 15mm-19mm, speed: 1.2m/min
7slide grinding head section speed: 700 mm/min

8working height900mm
9overall size: 4900X3900X1700mm
10Voltage/frequency380V/50Hz
11compress air: ≥0.6Mpa
12Air blowing rate: 1320 m3/Min
13water pump output volume: 400L/hX2
14Total power49Kw

II Main Structure:
·Flange adopt double Ball strew and straight line guiding rail, resetting well.
·Grinding head planker adopt high precision double V guiding rail, running stable, small shaking.
·Polishing adopt manual and Pneumatic half auto compensate.
·Upper angle of chamfer adopt ball screw and straight line guiding rail, Accurate positioning.
·Compaction frame auto lifting.
·Master drive adopt mechanism frequency conversion speed regulation, main driving axle upper place, easy change belt and maintain.
·Glass transmit adopt annular timing belt and pneumatic locating device, transfer stable, exactly fixed position.
·Adopt human interface and PLC control system, easy operate

III. Quality standard
1,processing glass quality requirement:
1)flat glass depth of parallelism error less than 3mm
2)flat glass thickness error less than 0.1mm
2,machine acceptance level:
     1)sub tense depth of parallelism error: ≤0.2mm/m;
     2)glass diagonal error: ≤0.5 mm/m;
3)average glass polishing surface
4)Other requirement: hemline, average bevel edges; average polishing brightness, without scratch, broken edges, and linen finish; machine operating without noise. Stable.

Some details:
Straight Line Double Edging Glass Machine (FSM2025B) Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.Glass Straight Line Bevel Machine,Glass Straight Line Beveller Machine,Glass Straight Line Round Edging

 Machine,Glass Straight Line Pencil Edging Machine,Glass Straight Line Pencil Edger.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Glass Edger and Polisher,GLASS GRINDER,Glass Straight Line Multilevel Edging Machine,Glass

 multiple chamfers machine,Glass Mitering Machine,Glass Straight Line Beveling Machine

Saint Best Group always looking for long term cooperaion, not one time deal.Glass Straight Line Double Edger Line,glass double edger line, glass polisher line,Glass Straight Line

Double Edger Line,double edger,Glass Straight Line Double Edging Machine,Glass Straight Line Double Round

 Edging Machine,Glass Straight Line Edging Machine.



Saint Best Glass machine Special advantage





Double edger:



1) Normally, double edger most big problem is water problem, water will be every where on the surface of glass, later, will bring it out to loading and unloading area, also, it can easy to make scratch on surface of glass, also, make dirty of glass surface.CNC Glass Edging Machine.Glass High Speed Double Edging Machine,

Glass High Speed Glass Seaming Machine,Glass High Speed Glass Seamer,Glass Flat Edge and Chamfer

Machine,Glass Straight Line Double Round Edging Machine.

Our double edger, when processing, on the surface of glass, there is no any water, this way, make your washing later on very simple, and more efficient.



2)There is very easy for glass moving not in order when processing, because, left and right side belts turning speed, and upper and bottom belt turning speed is different.

So, It will effect working performance, specially polishing result.

Our double edger, upper and bottom belt, left and right side belt, is driving by stronger three shaft gearing system, this system, make all belts turns in same speed, in same time. So, glass move inside very smooth.

Also, it is very easy for customer to change timming belts.Glass Straight Line Double Edger Line,

glass double edger line, glass polisher line,Glass Straight Line Double Edger Line,double edger,Glass Straight

 Line Double Edging Machine,Glass Straight Line Double Round Edging Machine,Glass Straight Line Edging

 Machine.



3)Polishing problem. Most of double edger, polishing result is not so good.

Our double edger using special design of slide board, we using cross-bearing slide board, when motor is moving, it will be more smooth, so, polishing result is very shinning and sharp.



4)Now, the trend for glass processing is more thicker and more big size glass sheet.

We had special strong basement

We had longer fixed and moving bridge to support glass

We had special stronger timming belt to delivery glass, bottom timming belt width is 65mm for 3m machine, 100mm for 5 mmachine.



5)Automatic center supporting system

No need to carry by hand when glass change, no need to adjust.



6)High sepcificaiton:

ABB motor,

Siemens PLC

Schnider electrical parts



FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Glass Automatic double edging Line,Glass Seamer,Glass Double Edger,Glass Edger and Polisher,

Glass Double  Edger and Polisher,Glass Straight Line Double Edging Machine,Glass Bilateral Machine.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Double Edger and Polisher Line,

Glass Straight Line Double Edger Line,Glass Straight Line Double Edge Line,Glass Double Edging Machine

Line,Solar Glass Round Double Edging Line,Glass Straight Line Double Edge Line.

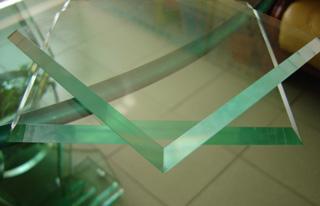

Products detailed pictures:

Glass Double Edger Glass Processing Equipment / Glass Processing Plant,Glass Double Edger ,Straiight Line Glass EdgerGlass Double Edger Glass Processing Equipment / Glass Processing Plant,Glass Double Edger ,Straiight Line Glass EdgerGlass Double Edger Glass Processing Equipment / Glass Processing Plant,Glass Double Edger ,Straiight Line Glass EdgerGlass Double Edger Glass Processing Equipment / Glass Processing Plant,Glass Double Edger ,Straiight Line Glass Edger
