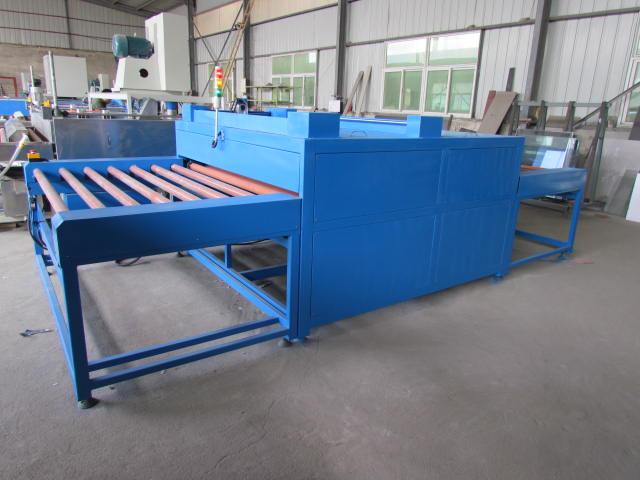

Double Glazing Heated Roller Press , Hot Roller Press Machine High efficiency

Short Description:

Machine: Double Glazing Hot Roller Press Machine Model: SBT-HRP2500/2200/2000/1800/1600 Application: Insulating Glass / Double Glazing Heated Roller Press Max IGU Size: 2200mm Glass Thicknes: 12~50mm Rollers: 5 Pairs Heated Roller Press for Warm Edge Spacer Insulating Glass / Double Glazing Quick Details Place of Origin: China (Mainland) Brand Name: SAINT BEST Model Number: SBT-HRP2500/2200/2000/1800/1600 After-sales Service Provided: Engineers available to se...


Product Detail

Product Tags

Machine: Double Glazing Hot Roller Press Machine Model: SBT-HRP2500/2200/2000/1800/1600
Application: Insulating Glass / Double Glazing Heated Roller Press Max IGU Size: 2200mm
Glass Thicknes: 12~50mm Rollers: 5 Pairs

Heated Roller Press for Warm Edge Spacer Insulating Glass / Double Glazing

Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-HRP2500/2200/2000/1800/1600
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Voltage: 380V 50Hz
  • Power: 10kw
  • Max. Glass Width:2200mm
  • IGU thickness: 12-50mm
  • Washing speed: 0.7-3.5m/min

Packaging & Delivery

Packaging Details: Standard Export Package or according to customers' demands.
Delivery Detail: 15days



Main features

It is a special machine for manufacturing compound rubber strip type of insulating glass and can

 fulfill insulating glass heating and pressing operation, change speed

in stepless way ,automatic temperature control system and precise measurement system, it is

 characteristic of convenient adjustment, high precision. Good heating and rolling

effect. It is the critical machine to manufacture compound rubber strip type of insulating glass.



Brief Introduction:
High intensity machine body
Uniform distribution far infrared quartz lamp
Easy lamp replacement device
Linear adjustable heating power
Digital display, motor driven, linkage stiff shaft adjusts the roller distance synchronously
Glass thickness superelevation alarm
Frequency control
Speed adjustable button installed in output end
Far-infrared thermoscope
Stable emergency device
Standard container load

Technical parameter
Main drive power 1.8 kW
Heating power 57.6 kW(36× 1.6kW)
Air motor power 0.37 kW× 2
Insulating glass width 300~2200mm
Insulating glass thickness 0~45mm
Conveying speed 1~6m/min
Overall dimensions 3900× 3200× 1600 mm
Weight 2500 kg
Work height 880± 20mm
Rollers 5pairs
Roller diameter 150mm
Roller hardness Shore hardness 80 degree



Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Heated Roller Press Machine for Warm Edge Spacer Insulating Glass,Heated Roller Press Machine for Warm Edge Spacer Double Glazing,Heated Roller Press for Warm Edge Spacer IGU.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Heated Roller Press for Warm Edge Spacer DGU,Insulating Glass Heated Roller Press,Double Glazing Heated Roller Press,Hot Roller Press,Heated Roller Press,Triple IGU Heated Roller Press,Triple Insulating Glass Heated Roller Press,Triple Glazed Heated Roller Press.



Packaging & Shipping

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Warm Edge Spacer IGU Heated Roller Press,Warm Edge Spacer DGU Heated Roller Press,Flexible Spacer DGU Hot Roller Press,Thermocompressor for Insulated Glass,Thermocompressor for Double Glass.

Double Glazing Heated Roller Press , Hot Roller Press Machine High efficiency

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Thermocompressor for Triple Glazing Glass,Flexible Spacer Double Glass Hot Roller Press,Warm Edge Spacer Hollow Glass Hot Roller Press.

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Warm Edge Spacer Hollow Glass Heated Roller Press Machine,Warm Edge Spacer Glass Heated Roller Press,Hot Roller Press Machine,Insulating Glass Hot Roller Press,Double Glazing Hot Press Machine,Heated Press for Insulating Glass,Heated Press for Double Glazing.

FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Warm Edge Spacer Hollow Glass Heated Roller Press Machine,Warm Edge Spacer Glass Heated Roller Press,Hot Roller Press Machine,Insulating Glass Hot Roller Press,Double Glazing Hot Press Machine,Heated Press for Insulating Glass,Heated Press for Double Glazing.
