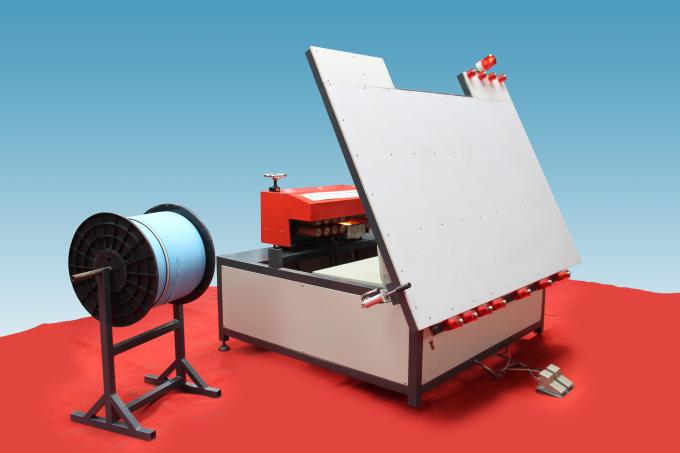

6 Pairs Single Side Heated Roller Press Table 1000mm Max Glass Width

Short Description:

Machine: Single Side Heated Roller Press Table Model: SBT-SSHP98 Application: Insulating Glass / Double Glazing Single Side Heated Roller Press Max IGU Size: 1000mm Glass Thicknes: 30mm Rollers: 6 Pairs Single Side Heated Roller Press for Warm Edge Spacer Insulating Glass / Double Glazing Quick Details Place of Origin: China (Mainland) Brand Name: SAINT BEST Model Number: SBT-SSHP98 After-sales Service Provided: Engineers available to service machinery oversea...


Product Detail

Product Tags

Machine: Single Side Heated Roller Press Table Model: SBT-SSHP98
Application: Insulating Glass / Double Glazing Single Side Heated Roller Press Max IGU Size: 1000mm
Glass Thicknes: 30mm Rollers: 6 Pairs

Single Side Heated Roller Press for Warm Edge Spacer Insulating Glass / Double Glazing

Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number: SBT-SSHP98
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Voltage: 380V 50Hz
  • Power: 10kw
  • Max. Glass Width:1000mm
  • IGU thickness: 30mm
  • Washing speed: 2m/min

Packaging & Delivery

Packaging Details: Standard Export Package or according to customers' demands.
Delivery Detail: 15days



I. Working Principle

1. Driven system

  A motor equipped with a speed controller is applied in the complete appliance, and the speed can be

 adjusted by chain diver.

2. Heating system:

Four far infrared U-tubes are used in this machine to heat the glass from the directions of

 both the top and the bottom, and it is possible to adjust the temperature automatically.

3. Rolling system

 There are six pairs of high-temperature resistance rubber roller to press and laminate the glass

 after the pieces are put together.An adjusting device with numeric display is deployed to show the

 thickness.The space between the upper and lower rubber rollers is adjusted with the

maximum laminating thickness is 30mm



II. Technical Parameters

Maximum breadth of the laminating glass

≤1000mm

Minimum size of the laminating glass

200×200mm

Maximum transmission speed

2m/min

Thickness of the hollow glass

10-30mm

Maximum rising distance of the upper rubber roll

30mm

Motor power

0.25KW  380V

Speed regulation range of the machine

5-10r/min

Heating power

3.2KW

Automatic temperature control

Max.400℃

Gross power

3.45 KW

Maximum overall dimensions

2000×1500×1100mm

Weight

200Kg

Power

380V 60HZ

Working air pressure

0.4-0.6Mpa



Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.Single Side Heated Roller Press Machine for Warm Edge Spacer Insulating Glass,Mimi Heated Roller Press Machine for Warm Edge Spacer Double Glazing,Single Side Heated Roller Press for Warm Edge Spacer IGU.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.Mini Heated Roller Press for Warm Edge Spacer DGU,Single Side Insulating Glass Heated Roller Press,Single Side Double Glazing Heated Roller Press,Mini Hot Roller Press,Mini Heated Roller Press,Mini Triple IGU Heated Roller Press,Mini Triple Insulating Glass Heated Roller Press,Single Side Triple Glazed Heated Roller Press.



Packaging & Shipping

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Mini Warm Edge Spacer IGU Heated Roller Press,Single Side Warm Edge Spacer DGU Heated Roller Press,Mini Flexible Spacer DGU Hot Roller Press,Single Side Thermocompressor for Insulated Glass,Mini Thermocompressor for Double Glass.

6 Pairs Single Side Heated Roller Press Table 1000mm Max Glass Width

Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Mini Thermocompressor for Triple Glazing Glass,Single Side Flexible Spacer Double Glass Hot Roller Press,Single Side Warm Edge Spacer Hollow Glass Hot Roller Press.

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Mini Warm Edge Spacer Hollow Glass Heated Roller Press Machine,Mini Warm Edge Spacer Glass Heated Roller Press,MINI Hot Roller Press Machine,Single Side Insulating Glass Hot Roller Press,MINI Double Glazing Hot Press Machine,Single Side Heated Press for Insulating Glass,MINI Heated Press for Double Glazing.

FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.MINI Warm Edge Spacer Hollow Glass Heated Roller Press Machine,Mini Warm Edge Spacer Glass Heated Roller Press,Single Side Hot Roller Press Machine,MINI Insulating Glass Hot Roller Press,MINI Double Glazing Hot Press Machine,Single Side Heated Press for Insulating Glass,Single Side Heated Press for Double Glazing,Hot Press Table,Heated Press Table.
