U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger

Short Description:

U Type Double Edger And Polisher Line: Glass Straight Line Double Edger Line Max Size: 4200mm Control System: PLC Max Speed: 6meters/Min Glass Edging Machine: Glass Straight Line Double Edge Line   U type Glass Processing Machinery Double Edger and Polisher Line Low noise   U type Double Edger and Polisher Line / Glass Straight Line Double Edger Line   Quick Details Condition: New Machine Type: Glass Edging Machine Production Capacity: one set per mon...


Product Detail

Product Tags

U Type Double Edger And Polisher Line: Glass Straight Line Double Edger Line Max Size: 4200mm
Control System: PLC Max Speed: 6meters/Min
Glass Edging Machine: Glass Straight Line Double Edge Line



U type Glass Processing Machinery Double Edger and Polisher Line Low noise



U type Double Edger and Polisher Line / Glass Straight Line Double Edger Line



Quick Details

  • Condition: New
  • Machine Type: Glass Edging Machine
  • Production Capacity: one set per month
  • Place of Origin: China (Mainland)
  • Brand Name: Saint Best
  • Model Number: SBT-SZM
  • Voltage: 380V or customized
  • Power(W): 105000
  • Weight: 20000KGS
  • Certification: CE
  • Warranty: one year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Type: Processing line
  • constitution: two double edger and one transferring table.

Packaging & Delivery

Packaging Details: Plastics cover. Suitable for sea transportation.
Delivery Detail: 60 days after placing the order



SBT-SZM U- Type Glass Double Edger Line for laminated glass

Characteristic:

1)      Water free on surface of glass when working, protect low e coated or any kind of coated glass, easy to wash glass…….

2)      Automatic center supporting system

3)      Fast working speed

4)      Sharp grinding and well polishing for thick glass

5)      SPECIAL GOOD FOR THICK AND BIG SHEET GLASS



SBT-D series glass straight line double edging machine is suitable for grinding two straight-line edges of furniture glass,architecture glass,electronic glass and so on;it has characters of rapid processing speed,high glass processing precision,high brightness. The machine adopts high precision transmission structure with two linear guiding bars and two ball bearing guide screw,it used the PLC automatic control,fixed with touch panel interface screen,easy to operation.

Line description:

1) SBT-D2042

Motor quantity

10+10

Transmission speed(m/min)

1—6m/min

Thickness of glass(mm)

3—25 mm

Width of glass processing(mm)

Glass min size:300x300mm

Glass max size:4200mm

Inverse corner width

2.5-3.5mm

Inverse corner error

≤0.3mm/1m

Inverse corner width error

≤0.2mm/1m

Diagonal error

≤0.5mm/1x1m

Installed power

51 kw

Voltage

380V / 50Hz or customized

Compressed air input

0.4—0.8 Mpa

Product Details

INCLUDED:2 Sets SBT-D Glass Straight Line Double Edger, 2 pcs Automatic Tranfering Table. Customer Can Select L Type , I Type ,U type and T type Based On Their Factory Size.Glass Flat Edger & Variable Miter Edging Machine.

U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger

Thickness of glass

 3mm-25mm



 250mm-2000mm

 Glass size

 300mm-4200mm



 500mm-6000mm

 Glass convey speed

 0.5m/min-7m/min

 Parallel degree error

 ±0.2mm/m

 Diagonal error

 ±0.52mm/m

 Arise error

 ±0.2mm/m

 Arise width

 1mm-3mm

 Max.grinding column

 5mm(Single side)

 Dudding width

 0mm-3mm

 Table height

 900mm

 Compressed air input

 0.4Mpa-0.8Mpa



 SBT-D20-51kw

 Total Power

 SBT-D22-61kw



 SBT-D26-65kw

New Technology of glass partition:

New Technology of glass partition called Nabula join, which is used two pcs of glass joined with one silicon tube together. It can reduce voice to 50DB behind partition. Now is widely used in airport, bank, public place where used as partition.Glass Automatic Sand Blasting Machine,

Glass Special Shape Grinding Machine, Glass Special Shape Grinder,Glass Cross Belt Grinding Machine,

Glass Cross Belt Grinder,Glass Cross Belt Edger.

Our Double edger can make engraving on the edge of glass, fast speed with stable working.

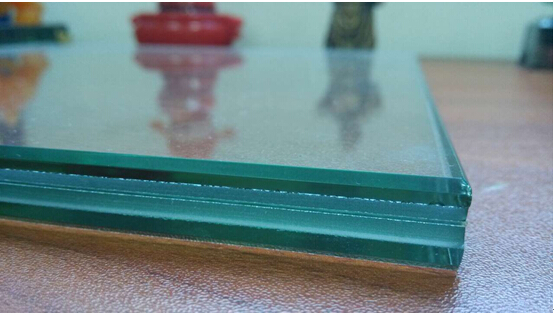

The nabula join glass sample as below:

U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger



U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger







Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.Glass Straight Line Bevel Machine,Glass Straight Line Beveller Machine,Glass Straight Line Round Edging

 Machine,Glass Straight Line Pencil Edging Machine,Glass Straight Line Pencil Edger.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.Glass Edger and Polisher,GLASS GRINDER,Glass Straight Line Multilevel Edging Machine,Glass

 multiple chamfers machine,Glass Mitering Machine,Glass Straight Line Beveling Machine

Saint Best Group always looking for long term cooperaion, not one time deal.Glass Straight Line Double Edger Line,glass double edger line, glass polisher line,Glass Straight Line

Double Edger Line,double edger,Glass Straight Line Double Edging Machine,Glass Straight Line Double Round

 Edging Machine,Glass Straight Line Edging Machine.



Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.CNC Glass Edging Machine.Glass High Speed Double Edging Machine,Glass High Speed Glass Seaming Machine,Glass High Speed Glass Seamer,Glass Flat Edge and Chamfer

Machine,Glass Straight Line Double Round Edging Machine.



FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.Glass Automatic double edging Line,Glass Seamer,Glass Double Edger,Glass Edger and Polisher,

Glass Double  Edger and Polisher,Glass Straight Line Double Edging Machine,Glass Bilateral Machine.

sometimes,if the machine have breakdown, the most reason is the machine inner electric parts problem,

but we use the famous and reliable parts for the machines inside.Double Edger and Polisher Line,

Glass Straight Line Double Edger Line,Glass Straight Line Double Edge Line,Glass Double Edging Machine

 Line,Solar Glass Round Double Edging Line,Glass Straight Line Double Edge Line.



Products detailed pictures:

U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger



U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger

U type Glass Processing Machinery Double Edger and Polisher Line Low noise,Glass Double Edging Line,Glass Double Edger
