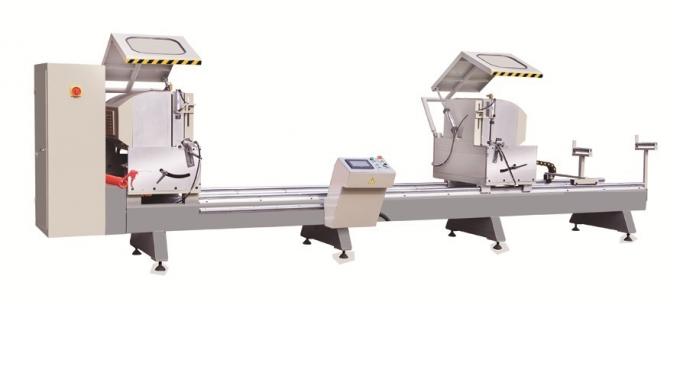

90 Degree CNC Cutting Machine Window and Door Machinery Custom Made

Short Description:

Machine: CNC Double Mitre Saw For Aluminum / UPVC / PVC / Vinyl Profiles Model: SBT-LJZ2-CNC-500×4200 Application: Plastic And Aluminum Profile Cutting Cutting Height: 10~300mm Cutting Width: 10~130mm Cutting Length: 400~4200mm Aluminum Window Machine: CNC Double Head Mitre Saw Cutting Angle: 90° ,22.5°,45°,67.5°  CNC Double Mitre Saw for Aluminum Profile / PVC / uPVC /  Vinyl Window CNC Double Mitre Saw for Aluminum / uPVC / PVC / Vinyl Profile CNC Doubl...


Product Detail

Product Tags

Machine: CNC Double Mitre Saw For Aluminum / UPVC / PVC / Vinyl Profiles Model: SBT-LJZ2-CNC-500×4200
Application: Plastic And Aluminum Profile Cutting Cutting Height: 10~300mm
Cutting Width: 10~130mm Cutting Length: 400~4200mm
Aluminum Window Machine: CNC Double Head Mitre Saw Cutting Angle: 90° ,22.5°,45°,67.5°

 CNC Double Mitre Saw for Aluminum Profile / PVC / uPVC /  Vinyl Window

CNC Double Mitre Saw for Aluminum / uPVC / PVC / Vinyl Profile

CNC Double Head Cutting Machine for Aluminum / uPVC / PVC / Vinyl Profile

Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: SAINT BEST
  • Model Number:SBT-LJZ2-CNC-500×4200
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Air Pressure:: 0.5~0.8(MPa)
  • Air Consumption:: 50(L/min)
  • Input Voltage:: 380V/50Hz
  • Input Power:: 4.5(Kw)
  • Spindle Rotary Speed:: 2800(r/min)
  • Cutting Height: 105mmx105mm
  • Cutting Width: 230mmx80mm
  • Cutting Length: 430mm~5000mm
  • Overall Dimension:: 6000 x 1300 x 1650(mm)
  • Weight:: 1200(kg)

Packaging & Delivery

Packaging Details: LCL or Container
Delivery Detail: 25 days

 Product Description

 Function:

UPVC and Aluminum Window Fabricating MachineUsed for plastic and aluminum profile cutting.For inward 45°~90°plastic and aluminum profile cuttingdouble head mitre saw.



Specifications

 window machine
1.convenience and safety
2.Japan CNC system adopted
3.for profiles such as aluminum profile


window machine CNC Double Mitre Saw



Introduction:



1. Used for profiles such as aluminum profile and curtain wall.

2. Two heads cutting angle 90° 45° 67.5° (22.5°) are available.

3. Cutting dimension controlled by screw, with high accurate driving and locating. Right head can achieve

the setting location automatically. Right head feed the profiles automatically; can also use for cutting aluminum

connectors

4. Japan CNC system adopted, which include PLC, touched screen, servomotor, and servodriver

,photoelectrical switch, and photoelectrical cells etc. Complete Japan CNC system results high accuracy

and smooth working.

5. Uniform speed feeding and smooth motion due to air-draulic damping cylinder.

6. Saw blade feeding system adopts imported linear guide kinematic pair results high accuracy.

7. Automatic protecting guards result convenience and safety.



Technical Parameter:



Model

SBT-LJZ2-CNC-500×4200

Input voltage

380V 50Hz

Input power

6.0Kw

Air pressure

0.5~0.8MPa

Air consumption

200L/min

Motor rotation speed

2800r/min

Cutting length

400~4200mm

Cutting width

10~130mm

Cutting height

10~300mm

Cutting angle

90°45°67.5°

Saw feeding speed

0~3m/min

Saw blade standard

φ500×4.4×φ30×Z120

Overall dimension

5500×1700×1600mm

Main Accessory
Solenoid SXPC
Temperature Controller Omron
PLC Omron, Misibisi
Cylinder JPC (Festo China)
Motor Anhui Sanyang/Zhenyang
Saw Blade Uniken
Mechanical Parts High Precision
Air Filter Device STNC
Electrical Button and Switcher Schneider
AC Contactor and Circuit Breaker Schneider
Approach Switcher Swiss CONTRINEX or Japan Omron

Machine Processing

SAINT BEST GROUP  selected each part  carefully , we are strive to quality first when machine  production and test each machine before delivery. So we will provide the best machine for you.PVC Profile Cutting Machine,Plastic Profile Clamping and Cutting Machine,PVC Window Making Machine for Plastic Profile Clamping and Cutting Machine,PVC Window Fabrication Machine.



Qualit Control

SAINT BEST GROUP engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.

After machine production finished, the products will be tested in professional ways make sure its performance.PVC Window Machine,Double Head uPVC Cutting Saw Machine,Double Circular Saw Machine,CNC uPVC Cutting Machines,Double Head Aluminum Cutting Machine,Double Mitre Saw,Double uPVC Mitre Saw,Double  PVC Mitre Saw,Double Vinyl Mitre Saw,Double Aluminum Mitre Saw.



Packaging & Shipping

SAINT BEST GROUP produce high quality machines, also pay attention to package.

The machines will be packed with steel pallet and standard export wooden case,

to make sure customer will receive the machines they ordered Intact.Double Mitre Saw Italy Model,Double Head Precision Cutting Saw,Double Head Precision Cutting Saw for Aluminum Profile,Double Head Precision Cutting Saw for Aluminum Profile  Italian Type,CNC Double Head Precision Cutting Saw,CNC Double Head Precision Cutting Saw for Aluminum Profile.



Our Services

Before Sale:

Free contact for the most suitable machine

Free professional design for each customer especially.



After sale service :

24 hours technical support by phone, email or skype (email or skype) .

1years  warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.



Payment Terms :

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal



A,12month warranty

B,1%-2% spare parts

C, OEM&ODM are welcomed

D,Trail orders are available

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.CNC Double Head Precision Cutting Saw for Aluminum Profile  Italian Type,CNC Double Head Mitre Saw,Digital Display Double Head Precision Cutting Saw for Aluminum Profile,Digital Display Double Head Precision Cutting Saw for PVC Profile,Digital Display Double Head Precision Cutting Saw for uPVC Profile,Double Head Precision Cutting Saw for Aluminum Profile.

Saint Best Group always looking for long term cooperaion, not one time deal

Our Advantage:

Our company owns excellent team of research and development and technician which lay foundation of high-quality machine. We use are imported components and after machine production finished, the products will be tested in professional ways make sure its performance.Double Head Precision Cutting Saw for PVC Profile,Double Head Precision Cutting Saw for uPVC Profile,Double Head Precision Cutting Saw for Vinyl Profile,CNC Double Head Precision Cutting Saw for PVC Profile,CNC Double Head Precision Cutting Saw for PVC Profile  Italian Type.





FAQ

 1. Question:Are you manufacture?

Answer:

Yes,we are the professional manufacture which have more than 5 workshops.

 2.Question: About this Machine,What’s the guarantee ?

Answer:

1).Our guarantee for 12 months.

 2).24 hour’s technical support by email or calling

3).English manual and video tutorial

4).We will provide the consumable parts at an agency price

5).24 hours on line service each day, free technical support.

3.Question:Why your price is higher than another company or factories ?

Answer: please check, what is is the differences of the machine of  parts ,service and guarantee,especially the machine inner electric parts.CNC Double Head Precision Cutting Saw for uPVC Profile,CNC Double Head Precision Cutting Saw for uPVC Profile  Italian Type,CNC Double Head Precision Cutting Saw for Vinyl Profile,CNC Double Head Precision Cutting Saw for Vinyl Profile  Italian Type.

90 Degree CNC Cutting Machine Window and Door Machinery Custom Made90 Degree CNC Cutting Machine Window and Door Machinery Custom Made
